GO 5-axis Milling
GO 5-axis Milling is CAM for CNC milling 5-axis when a part requires machining rotativa, MultiBlade, Porting, reach and control of orientation.
Milling rotary for parts that superam o 3 axes
As options of milling 5-axis, MultiBlade and Porting of the GibbsCAM expand a CNC programming when a part requires more reach, control of orientation and strategies multi-surface.
Cada module has features, input requirements and capabilities of toolpath own. A choice right depends of the part, of the machine, of the solids/surfaces available and of the expected result.
Key features
Capabilities preserved from the official GibbsCAM page
Milling of 5-axis
O module of milling of 5-axis performs movements with two axes rotary and three linear, using 3D wireframe, solids and surfaces as entry for handle complex geometries.
- Strategies multi-surface for formas complex
- Control of the tilt of the axis of the tool
- Control of collision between tool, support, part and fixturing

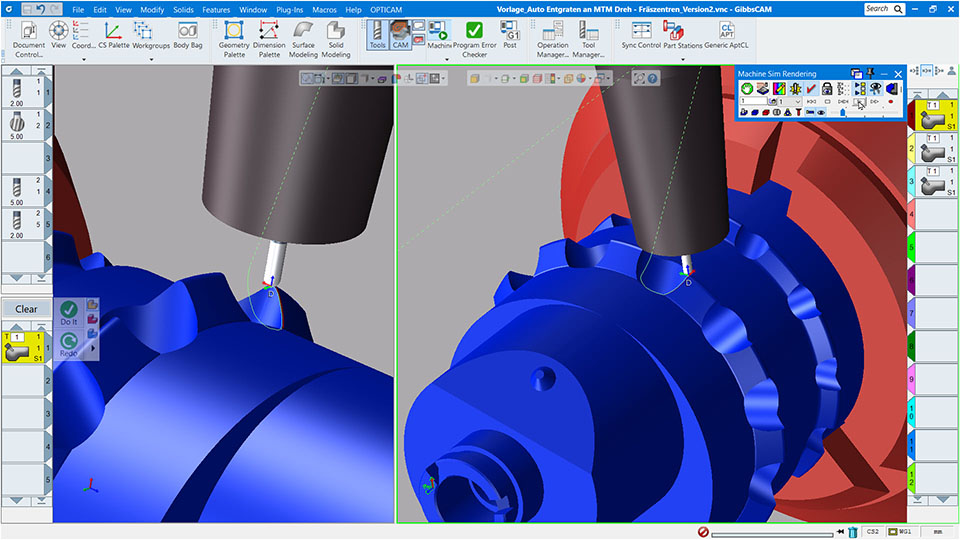

- Deburring automatic in bordas externas of the geometry
5-axis multiblade of 5-axis

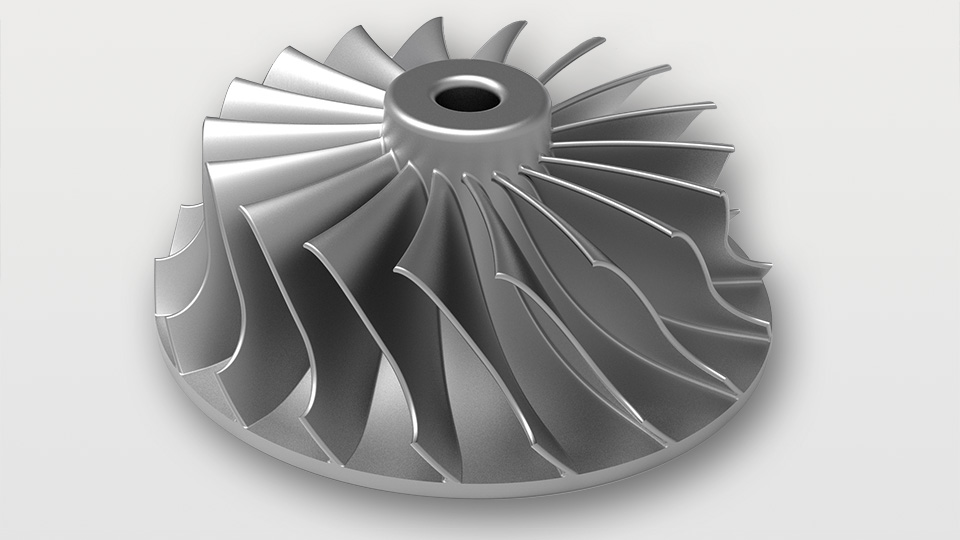

A option MultiBlade covers parts with blades, impellers and channels repetitive, offering strategies of roughing and finishing oriented a guided surfaces.
- Strategies specific for geometries with multiple blades

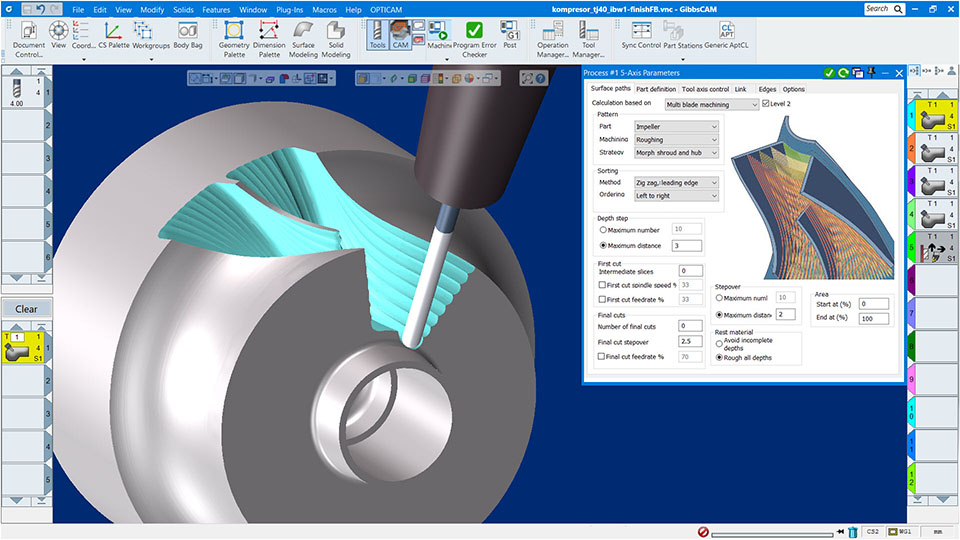

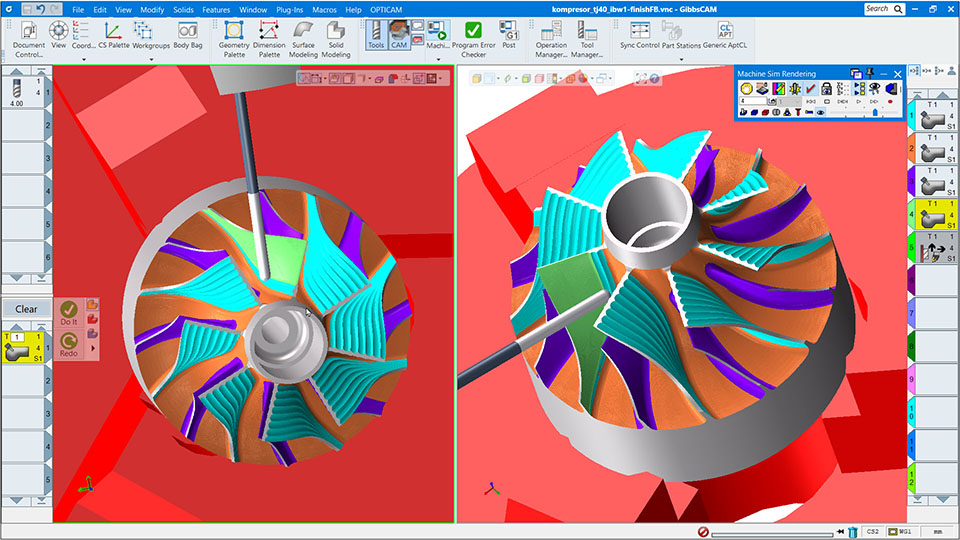

- Roughing and finishing with orientation multi-axis
- Fluxo recommended for parts aeroespaciais, energia and components of alta complexity
Port assignment of ports for 5-axis

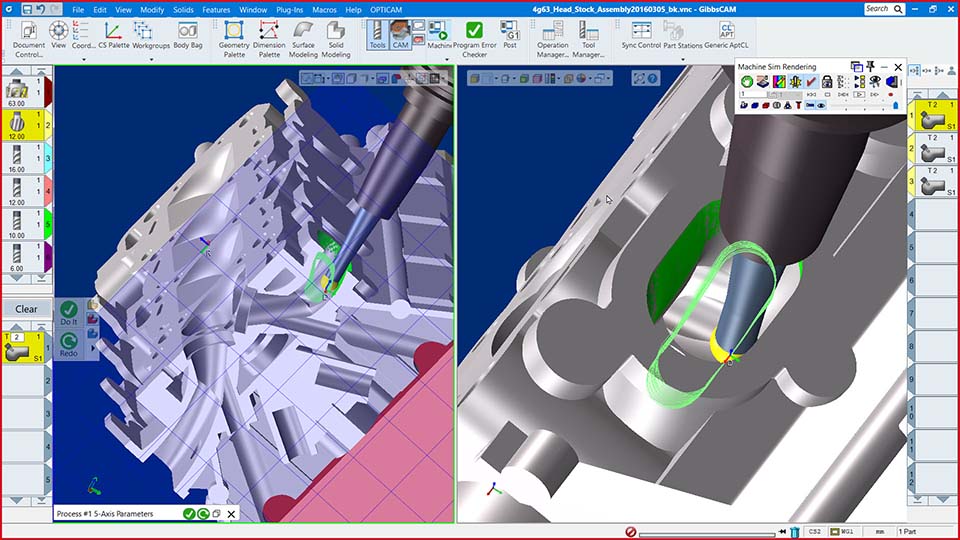

Porting supports channels and passages with control of trajectory and orientation, apoiando a programming of geometries internal or guided by surfaces.
- Strategies for channels, passages and ports
- Control of entry, reach and orientation of the tool

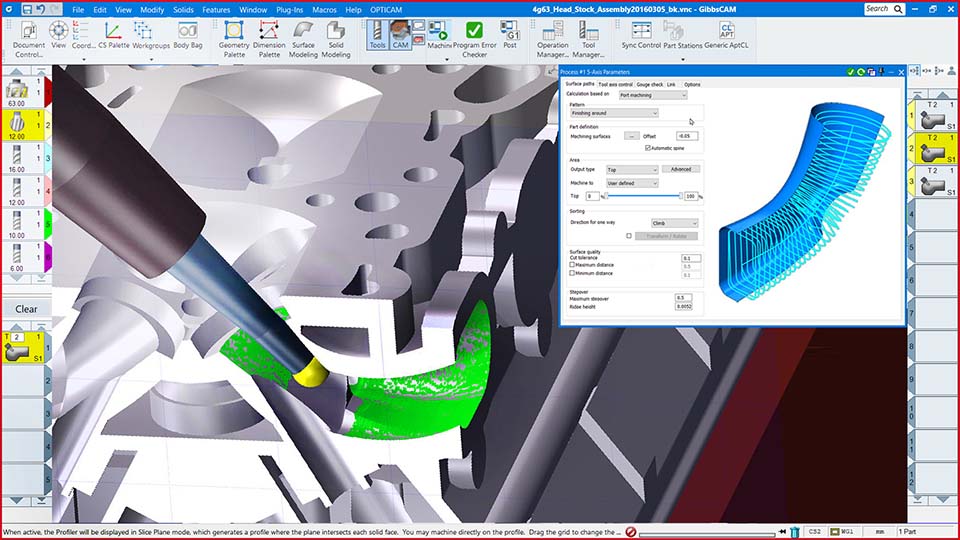

- Interface of parameters for ajustar o comportamento of the path
Next step
Choose a extension 5-axis by the part, not pelo name of the module
A ControlSys helps a separar when usar 5-axis geral, MultiBlade or Porting, connecting strategy, geometry, machine and post-processor.
